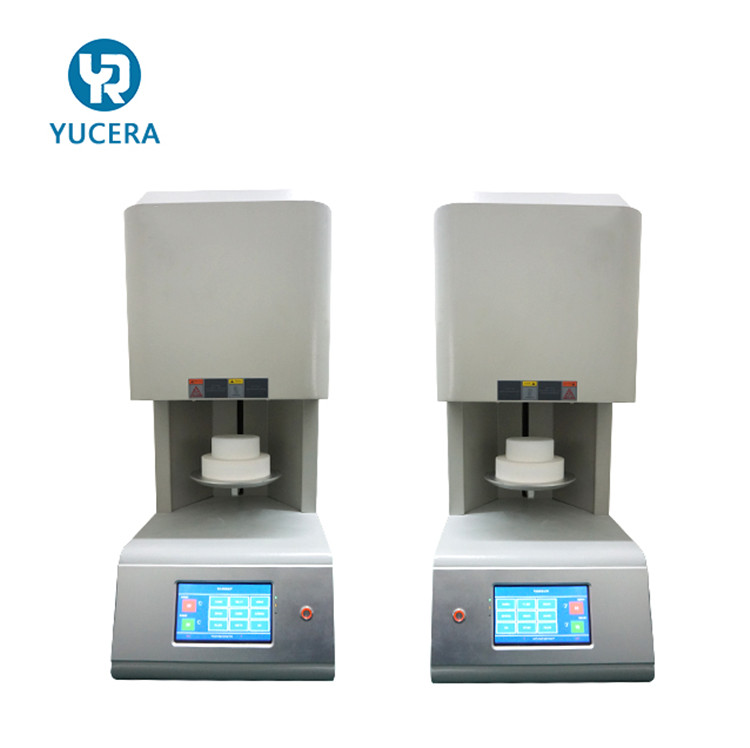

Dental instruments china YUCERA dental laboratory sintering furance
Introduction of Zirconia Sintering Furnace:
1. The crystal furnace designed for Bantering Draconian. Heating element using high purity silicon molybdenum rods, Draconian without any pollution, and has a high surface temperature, not easy to deformation, the advantages of long life.
2. Furnace material made of crystalline mull ceramic fiber is vacuum-adsorbed to strictly control the iron impurity content in the forming process, which can meet the requirements of various rapid Bantering and make the crystallization environment of Draconian more pure.
3. This product has been widely used in domestic and foreign workers.
Technical Specifications of Dental Laboratory Sintering Furance
| Name | Unit | Parameter |
| Working Power | KW | 1.5 KW |
| Voltage | V | AC220V,50/60Hz,Single phase |
| Max. Temperature | ℃ | 1700 |
| Continuous working temperature | ℃ | 1600 |
| Suggested heating rate | ℃/min | ≤ 20 |
| Temperature accuracy controlled | ℃ | ± 1 |
| Heating element | | MoSi2 Heater |
| Connection of heating element | | In series |
| Thermal Couples | | B type |
| Dimension of inside chamber | inch | 100x100x100mm |
Heating rate:0-30℃ /min
Thermocouple:B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube
Heating element:U type MoSi2 heating elements(4pcs)
Character for Sintering Dental Furance:
1. This 1700C Dental zriconia sintering furnace is perfectly suited for sintering zirconia crown
2. The special high purity Molybdenum disilicide heating elements offer best possible protection against chemical interaction between charge and heating elements.
3. Automatic program for heating, platform moving. It’s very convenient for dental crown firing.
4. This 1700C Sintering Dental Furance is perfectly suited for sintering zirconia crown

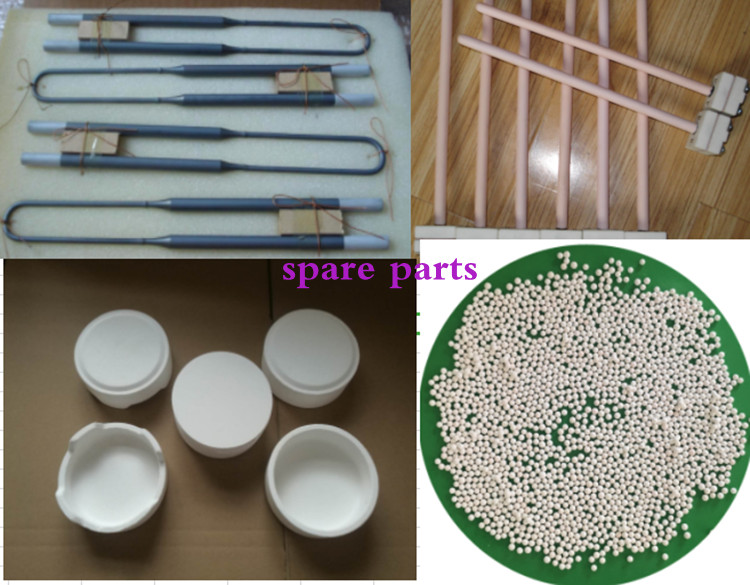

Consumable parts of Zirconia Block furance for optional:
